69601 | HELUKABEL
PVC-drag chains conductor line, Single 602-RC-.., 10 mm², AWG 8, black, outer Ø 9.4 mm, 69601
Unit Price (€ / mtr.)
4.1174 € *
Available: 0 mtr.
Leadtime: On Request **

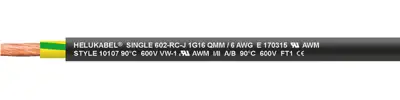

Single core cable, 69601, HELUKABEL
High flexible special single core cable for drag chains is used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry and moist locations as well as for outdoor use. It is designed for exportorientated machinery manufacturer for flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts.
Features
- Largely resistant to oil
- For outdoor use
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 9.4 mm | |
| AWG cross-section | AWG 8 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 10 mm² | |
| Material | PVC | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 600 V | |
| Standard number | UL, CSA | |
| Test voltage | 4 kV | |
| Temperature range (active) | -5 °C to 90 °C | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
