69891 | HELUKABEL
PVC-switching strand, FÜNFNORM H07V2-K, 10 mm², AWG 8, orange-dark blue, outer Ø 6.6 mm, 69891
Unit Price (€ / mtr.)
3.6057 € *
Available: 0 mtr.
Available in 5 Days: 5,185 mtr.
Leadtime: 6 Weeks **

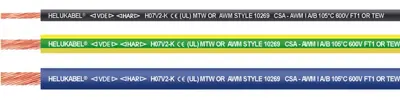

Single core, 69891, HELUKABEL
The 69891 is a PVC single core with five norms connecting jumper wire primarily, designed for exportes, used in machine tools. The approbation of HAR, UL-AWM, UL-MTW, CSA-AWM, CSA-Equipment-wire make possible an economical storekeeping and simplification of parts list.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 6.6 mm | |
| AWG cross-section | AWG 8 | |
| Colour | orange-dunkelblau | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 10 mm² | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2 kV | |
| Temperature range (active) | 5 °C bis 90 °C | |
| Temperature range (unmoved) | -40 °C bis 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
