713545 | HELUKABEL

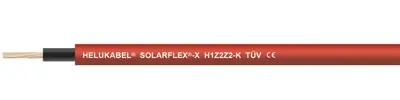

XLPO-Solar cable, halogen free, SOLARFLEX-X H1Z2Z2-K, 4.0 mm², AWG 12, red, outer Ø 5.9 mm, 713545
Unit Price (€ / mtr.)
1.8564 € *
Available: 100 mtr.
Leadtime: On Request **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 mtr.
1.8564 €
10 mtr.
1.6303 €
50 mtr.
1.4875 €
100 mtr.
1.2614 €
500 mtr.
1.1186 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solar cable, 713545, HELUKABEL
The 713545 is a cross-linked single core cable used for wiring solar modules. Suitable for direct burial; recommendation: laying in pipes. Not suitable for permanent installation in water. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II).
Technical specifications
| Aderisolationsmaterial | XLPO | |
| Außendurchmesser | 5.9 mm | |
| AWG-Leiterquerschnitt | AWG 12 | |
| Farbe | rot | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 4,0 mm² | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 1000 V | |
| Prüfspannung | 6.5 kV | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Zolltarifnummer | 85446010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
