713570 | HELUKABEL

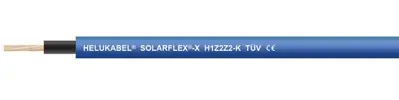

XLPO-Solar cable, halogen free, SOLARFLEX-X H1Z2Z2-K, 6.0 mm², AWG 10, blue, outer Ø 6.4 mm, 713570
Unit Price (€ / mtr.)
2.4514 € *
Available: 100 mtr.
Leadtime: On Request **
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4514 €
10 mtr.
2.1658 €
50 mtr.
1.9635 €
100 mtr.
1.6660 €
500 mtr.
1.4756 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solar cable, 713570, HELUKABEL
The 713570 is a cross-linked single core cable used for wiring solar modules. Suitable for direct burial; recommendation: laying in pipes. Not suitable for permanent installation in water. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II).
Technical specifications
| Core insulation material | XLPO | |
| Outer diameter | 6.4 mm | |
| AWG cross-section | AWG 10 | |
| Colour | blue | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 6.0 mm² | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 1000 V | |
| Test voltage | 6.5 kV | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Customs tariff number | 85446010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
