32001 | HELUKABEL
PVC earth cable NYY-J 1 x 4.0 mm², AWG 12, unshielded, black, 32001
Unit Price (€ / mtr.)
1.1543 € *
Available: 0 mtr.
Leadtime: On Request **

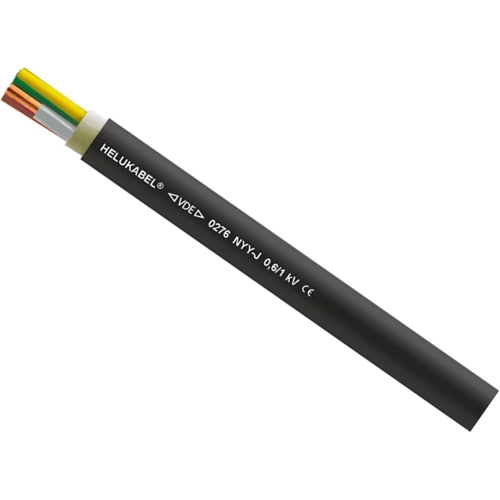

Earth cable, 32001, HELUKABEL
The 32001 is a power cable for energy supply is installed in open air, in underground, in water, in concrete, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 1 | |
| Ausführung | Erdleitung | |
| Außendurchmesser | 8.1 mm | |
| AWG-Leiterquerschnitt | AWG 12 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.1 = eindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 4,0 mm² | |
| Material | PVC | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 4 kV | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
