32202 | HELUKABEL

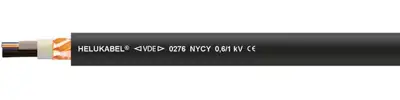

PVC high current stranded cable NYCY 2 x 1.5 mm², AWG 16, black, 32202
Unit Price (€ / mtr.)
2.0349 € *
Available: 0 mtr.
Leadtime: On Request **
High current stranded cable, 32202, HELUKABEL
The 32202 is a power cable for energy supply is used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test datas. Overall, where increased electrical and also mechanical protection are required. This cable is installed in open air, in underground, in water, in concrete, indoors and in cable ducts.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 2 | |
| Version | high current stranded cable | |
| Outer diameter | 13 mm | |
| AWG cross-section | AWG 16 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.1 = stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PVC | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 600 V | |
| Test voltage | 4 kV | |
| Temperature range (active) | -5 °C to 50 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
