43052 | HELUKABEL

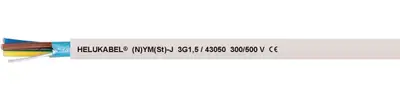

PVC installation line (N)YM(St)-J 5 G 1.5 mm², AWG 16, shielded, gray, 43052

Order No.: 93F6548
EAN: 4060892259715
MPN:
43052
Series: (N)YM(St)-J
HELUKABEL
43052 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
2.6537 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
2.6537 €

Installation cable, 43052, HELUKABEL

The 43052 is a PVC installation cable with static screen, designed for the effective limitation of electromagnetic interference fields. The design proves to be advantageous for installation in the computer sector, in hospitals, in industrial control rooms with interference-sensitive devices as well as in living areas of people that are extremely sensitive to radiation. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Core insulation material PVC
Number of cores 5
Version installation line
Outer diameter 12 mm
AWG cross-section AWG 16
Colour gray
Halogen free No
Conductor category CL.1 = stranded
Cable material copper, bright
Cable cross-section 1.5 mm²
Material PVC
Rated voltage 500 V
Rated voltage U0 300 V
Test voltage 2 kV
Shielding shielded
Protective conductor available Yes
Temperature range (active) -5 °C to 70 °C
Temperature range (unmoved) -40 °C to 70 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
