43054 | HELUKABEL
PVC installation line (N)YM(St)-J 3 G 2.5 mm², AWG 14, shielded, gray, 43054
Unit Price (€ / mtr.)
2.5347 € *
Available: 0 mtr.
Leadtime: On Request **

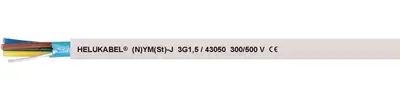

Installation cable, 43054, HELUKABEL
The 43054 is a PVC installation cable with static screen, designed for the effective limitation of electromagnetic interference fields. The design proves to be advantageous for installation in the computer sector, in hospitals, in industrial control rooms with interference-sensitive devices as well as in living areas of people that are extremely sensitive to radiation. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 3 | |
| Ausführung | Installationsleitung | |
| Außendurchmesser | 12 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiterklasse | Kl.1 = eindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PVC | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
