53195 | HELUKABEL

Polymer installation line NHXMH-J 1 G 16 mm², AWG 6, unshielded, gray, 53195

Order No.: 93F6761
EAN: 4060892260360
MPN:
53195
Series: NHXMH-J
HELUKABEL
53195 HELUKABEL Other Cables and Wires

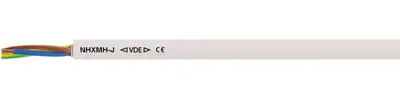

Image may differ
Unit Price (€ / mtr.)
3.9865 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
3.9865 €

Installation cable, 53195, HELUKABEL

The 53195 is a halogen-free installation cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Core insulation material XLPE
Number of cores 1
Version installation line
Outer diameter 12.4 mm
AWG cross-section AWG 6
Colour gray
Halogen free Yes
Conductor category CL.2 = stranded
Cable material copper, bright
Cable cross-section 16 mm²
Material polymer
Rated voltage 500 V
Rated voltage U0 300 V
Test voltage 2 kV
Shielding unshielded
Protective conductor available Yes
Temperature range (unmoved) -30 °C to 70 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
