53200 | HELUKABEL

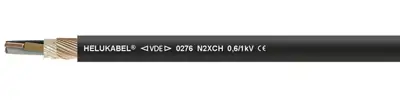

PO high current stranded cable N2XCH 2 x 1.5 mm², unshielded, black, 53200
Unit Price (€ / mtr.)
5.117 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Power cable, 53200, HELUKABEL
The power cable with enhanced characteristics in case of fire is used in power stations. The concentric conductor can be used as a PE or PEN conductor or as screen. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in masonary walls and in concrete. This cable is suitable for outdoor applications and in underground by using in conduits or tubes.
Features
- Halogen-free, no liberation of corrosive or toxic gases
- Low smoke development
- Limited propagation of fire
Technical specifications
| Core insulation material | XLPE | |
| Number of cores | 2 | |
| Version | Starkstromkabel | |
| Outer diameter | 12 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,5 mm² | |
| Material | PO | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 4 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C bis 50 °C | |
| Temperature range (unmoved) | -30 °C bis 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
