53284 | HELUKABEL

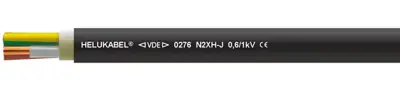

PO high current stranded cable N2XH 4 x 1.5 mm², unshielded, black, 53284
Unit Price (€ / mtr.)
2.499 € *
Available: 0 mtr.
Leadtime: On Request **
Power cable, 53284, HELUKABEL
Halogen-free power cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in power stations, industrial installations, communal establishments, hotels, airports, underground stations, railway stations, hospitals department stores, banks, schools theaters, multi-storey buildings, process control centres etc. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in masonary walls and in concrete. This cable is suitable for outdoor applications and in underground by using in conduits or tubes.
Features
- Halogen-free, no separation of corrosive or toxic gases
- Limited propagation of fire
- Low smoke development
Technical specifications
| Core insulation material | XLPE | |
| Number of cores | 4 | |
| Version | high current stranded cable | |
| Outer diameter | 13 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PO | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C to 50 °C | |
| Temperature range (unmoved) | -30 °C to 90 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
