53366 | HELUKABEL

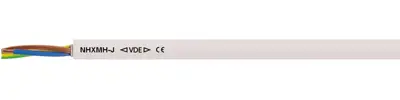

Polymer installation line NHXMH-J 5 x 1.5 mm², AWG 16, unshielded, gray, 53366

Order No.: 93F6769
EAN: 4060892260629
MPN:
53366
Series: NHXMH-J
HELUKABEL
53366 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
2.0349 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
2.0349 €

Installation cable, 53366, HELUKABEL

The 53366 is a halogen-free installation cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Aderisolationsmaterial XLPE
Anzahl der Adern 5
Ausführung Installationsleitung
Außendurchmesser 11 mm
AWG-Leiterquerschnitt AWG 16
Farbe grau
Halogenfrei Yes
Leiterklasse Kl.1 = eindrähtig
Leitermaterial Kupfer, blank
Leiterquerschnitt 1,5 mm²
Material Polymer
Nennspannung 500 V
Nennspannung U0 300 V
Prüfspannung 2 kV
Schirmung ungeschirmt
Schutzleiter vorhanden No
Temperaturbereich (unbewegt) -30 °C bis 70 °C
Logistics
Zolltarifnummer 85444995
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
