700560 | HELUKABEL

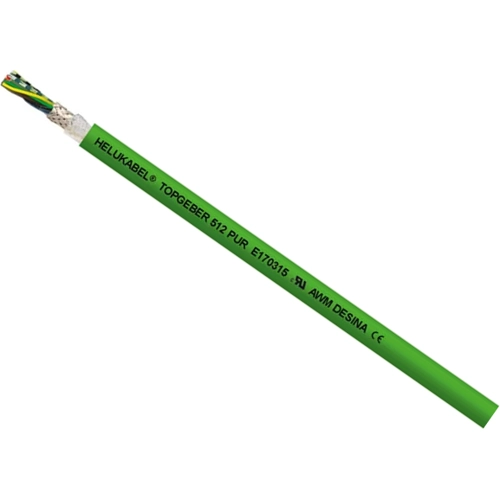

PUR encoder cable TOPGEBER 512 PUR 16 x 4 x 2 x 0.14 mm² + (4 x 0.14 mm²) + 4 x 0.5 mm², shielded, green, 700560
Unit Price (€ / mtr.)
11.9476 € *
Available: 0 mtr.
Leadtime: On Request **
Drag chain cable, 700560, HELUKABEL
The 700560 is a special PUR drag chain feedback cable transmit the control pulses for positioning and operating characteristics of servomotors. This cable is used as connecting cables for tachos, brakes and pulse generators in applications subjected to heavy mechanical stresses in industrial equipment, machine tools, control and automation equipment.
Technical specifications
| Core insulation material | polypropylene | |
| Number of cores | 16 | |
| Version | encoder cable | |
| Outer diameter | 8.3 mm | |
| Colour | green | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 4 x 2 x 0.14 mm² + (4 x 0.14 mm²) + 4 x 0.5 mm² | |
| Material | PUR | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Temperature range (active) | -30 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
