707398 | HELUKABEL

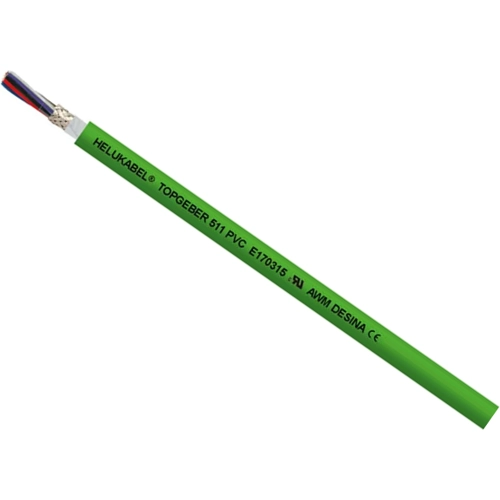

PVC encoder cable TOPGEBER 511 PVC 9 x 3 x (2 x 0.14 mm²) + (3 x 0.14 mm²), shielded, green, 707398
Unit Price (€ / mtr.)
8.1753 € *
Available: 0 mtr.
Leadtime: On Request **
Feedback cable, 707398, HELUKABEL
The 707398 is a special PVC feedback cable low cost alternativ to Motorcables with PUR Sheath for fix instalation or occasional moving applications. This position feedback cable transmit the control pulses for positioning and operating characteristics of servomotors. This cable is used as connecting cables for tachos, brakes and pulse generators in industrial equipment, machine tools, control and automation equipment.
Technical specifications
| Core insulation material | polypropylene | |
| Number of cores | 9 | |
| Version | encoder cable | |
| Outer diameter | 9.2 mm | |
| Colour | green | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable cross-section | 3 x (2 x 0.14 mm²) + (3 x 0.14 mm²) | |
| Material | PVC | |
| Rated voltage | 300 V | |
| Test voltage | 1.5 kV | |
| Shielding | shielded | |
| Temperature range (active) | 0 °C to 60 °C | |
| Temperature range (unmoved) | -20 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
