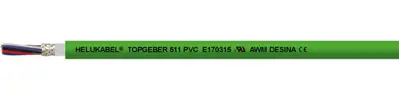

PVC encoder cable TOPGEBER 511 PVC 12 x 4 x 2 x 0.34 mm² + 4 x 0.5 mm², shielded, green, 707417
Unit Price (€ / mtr.)
6.7592 € *
Available: 0 mtr.
Leadtime: On Request **
Feedback cable, 707417, HELUKABEL
The 707417 is a special PVC feedback cable low cost alternativ to Motorcables with PUR Sheath for fix instalation or occasional moving applications. This position feedback cable transmit the control pulses for positioning and operating characteristics of servomotors. This cable is used as connecting cables for tachos, brakes and pulse generators in industrial equipment, machine tools, control and automation equipment.
Technical specifications
| Aderisolationsmaterial | Polypropylen | |
| Anzahl der Adern | 12 | |
| Ausführung | Geberleitung | |
| Außendurchmesser | 8.9 mm | |
| Farbe | grün | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leiterquerschnitt | 4 x 2 x 0,34 mm² + 4 x 0,5 mm² | |
| Material | PVC | |
| Nennspannung | 30 V | |
| Prüfspannung | 1.5 kV | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | 0 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | -20 °C bis 80 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
