76103 | HELUKABEL

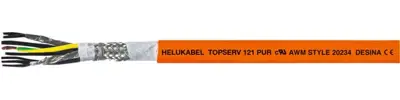

PUR servo line TOPSERV 121 PUR 8 x 4G1.5 mm² + 2 x (2 x 0.5 mm²), AWG 17, shielded, orange, 76103
Unit Price (€ / mtr.)
13.5184 € *
Available: 0 mtr.
Leadtime: On Request **
Drag chain cable, 76103, HELUKABEL
The 76103 is a special PUR drag chain cable for the braking function and the thermal protection in this cable is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. This requirement is met to a high degree by this cable. The cable has an additional overall screen to ensure EMC compatibility, i.e. for protection against electromagnetic interference.
Technical specifications
| Anzahl der Adern | 8 | |
| Ausführung | Servoleitung | |
| Außendurchmesser | 12.4 mm | |
| AWG-Leiterquerschnitt | AWG 17 | |
| Farbe | orange | |
| Halogenfrei | Yes | |
| Leiterquerschnitt | 4G1,5 mm² + 2 x (2 x 0,5 mm²) | |
| Material | PUR | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1000 V | |
| Prüfspannung | 4 kV | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -30 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
