11007747 | HELUKABEL

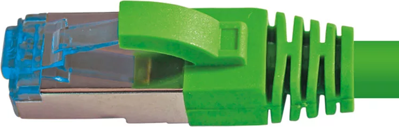

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, LSZH, 0.15 m, green, 11007747
Order No.: 93F9153
EAN: 4060892318269
MPN:
11007747
Unit Price (€ / pc.)
5.712 € *
Available: 0 pcs.
Leadtime: On Request **
Patch cable, 11007747, HELUKABEL
Jumper cable for the connection between IP20 protected ethernet applications according ISO/IEC 11801 with RJ45 plugs. Usable for normal extra flexible applications.
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | patch cable | |
| AWG cross-section | AWG 26-7 | |
| Colour | green | |
| Halogen free | Yes | |
| Cable type | S/FTP | |
| Cable length | 0.15 m | |
| Category | Cat 6A | |
| Material | LSZH | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
