90064 | HELUKABEL

Corrugated hose, inside Ø 23.9 mm, outside Ø 31.3 mm, PA, black, 90064

Order No.: 93F7064
EAN: 4060892380105
MPN:
90064
Series: HELUcond CO-PA
HELUKABEL
90064 HELUKABEL Protective Tubes
Image may differ
Unit Price (€ / mtr.)
16.184 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
16.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
16.184 €

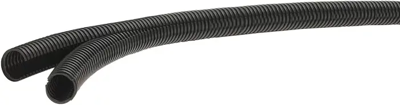

Corrugated tube, 90064, HELUKABEL

The 90064 corrugated tube has a high mechanical strength and it offers a simple installation of pre-fabricated lines. The dividable and reclosable cable protection tube for subsequent mechanical protection of the cables.

Features

  • Halogen-free
  • Resistant to: fuels, mineral oils, greases
  • Trouble-free retrofitting

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Outer diameter 31.3 mm
Colour black
Flame-retardant No
Inner diameter 23.9 mm
Material PA
max. operating temperature 120 °C
min. operating temperature -40 °C
Nominal width 23 mm
Logistics
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
