90066 | HELUKABEL

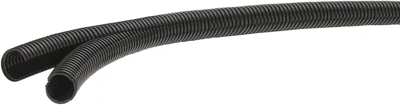

Corrugated hose, inside Ø 43.1 mm, outside Ø 54.2 mm, PA, black, 90066

Order No.: 93F7066
EAN: 4060892380129
MPN:
90066
Series: HELUcond CO-PA
HELUKABEL
90066 HELUKABEL Protective Tubes
Image may differ
Unit Price (€ / mtr.)
27.2391 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
27.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
27.2391 €

Corrugated tube, 90066, HELUKABEL

The 90066 corrugated tube has a high mechanical strength and it offers a simple installation of pre-fabricated lines. The dividable and reclosable cable protection tube for subsequent mechanical protection of the cables.

Features

  • Halogen-free
  • Resistant to: fuels, mineral oils, greases
  • Trouble-free retrofitting

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Outer diameter 54.2 mm
Colour black
Flame-retardant No
Inner diameter 43.1 mm
Material PA
max. operating temperature 120 °C
min. operating temperature -40 °C
Nominal width 45 mm
Logistics
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
