920177 | HELUKABEL

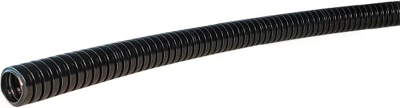

Corrugated hose, inside Ø 36 mm, outside Ø 42.4 mm, PP, black, 920177

Order No.: 91F9353
EAN: 4060892380365
MPN:
920177
Series: HELUcond PP
HELUKABEL
920177 HELUKABEL Protective Tubes
Image may differ
Unit Price (€ / mtr.)
2.8322 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
2.8322 €

Corrugated tube, 920177, HELUKABEL

The 920177 is a cable protection tube for medium stress applications. This product is resistant to: fuels, mineral oils, greases, weak bases, weak acids.

Features

  • Halogen-free
  • Cadmium-free

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Chemical plants
Technical specifications
Outer diameter 42.4 mm
Colour black
Flame-retardant Yes
Inner diameter 36 mm
Material PP
max. operating temperature 130 °C
min. operating temperature -40 °C
Nominal width 37 mm
Logistics
Customs tariff number 39173300
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
