97028 | HELUKABEL

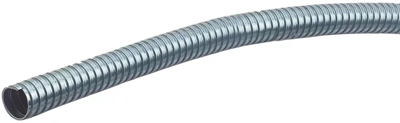

Protective hose, inside Ø 23 mm, outside Ø 27 mm, steel, galvanized, silver, 97028

Order No.: 93F7474
EAN: 4060892381249
MPN:
97028
Series: SPR-AS
HELUKABEL
97028 HELUKABEL Protective Tubes
Image may differ
Print
Key Specification:
Inner diameter 23 mm
Outer diameter 27 mm
Material steel, galvanized
Show 15 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
4.3078 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
4.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 mtr.
4.3078 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Metallic tube, 97028, HELUKABEL

The 97028 is a spiral wound metallic tube with high tensile and transverse pressure load rating.

Applications

  • Machine and plant construction
  • Automation technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Outer diameter 27 mm
Colour silver
Flame-retardant No
Inner diameter 23 mm
Material steel, galvanized
max. operating temperature 250 °C
min. operating temperature -50 °C
Degree of protection (IP) IP40
Show similar products 0
Logistics
Customs tariff number 83071000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
