34063 | HELUKABEL

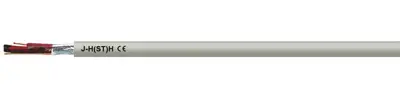

Installation cable, 12-wire, J-H(ST)H, 6 x 2 x 0.8 mm, gray, 34063
Unit Price (€ / mtr.)
2.5228 € *
Available: 0 mtr.
Leadtime: On Request **
Installation cable, 34063, HELUKABEL
The halogen-free installation cable with improved characteristics in the case of fire is used for the telephone transmission, measurement and control technology. The static screen protects the transmission circuits against outer electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. This cable is preferably used for telecommunication installations in dry and damp premises, and in or under plaster.
Technical specifications
| Anzahl der Adern | 12 | |
| Außendurchmesser | 10 mm | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leiteraufbau | 6 x 2 x 0,8 mm | |
| Leitermaterial | Kupfer, blank | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 70 °C |
Download
Logistics
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
