34157 | HELUKABEL

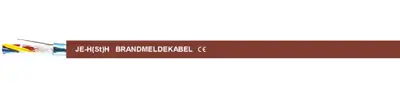

Fire alarm cable, 4-wire, JE-H(St)H, 2 x 2 x 0.8 mm, red, 34157
Unit Price (€ / mtr.)
2.5704 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Fire alarm cable, 34157, HELUKABEL
The 34157 is a static screened installation cable for telecommunication purposes. The static screen prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety conciousness take a special significance, e. g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
Technical specifications
| Core insulation material | Polymer | |
| Number of cores | 4 | |
| Outer diameter | 7.5 mm | |
| Colour | rot | |
| Halogen free | Yes | |
| Cable structure | 2 x 2 x 0,8 mm | |
| Cable material | Kupfer, blank | |
| Temperature range (active) | -5 °C bis 50 °C | |
| Temperature range (unmoved) | -30 °C bis 70 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
