34171 | HELUKABEL

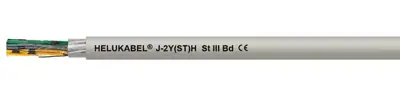

Telephone cable, 40-wire, J-2Y(St)H, 20 x 2 x 0.6 mm, gray, polymer, 34171

Order No.: 93F8611
EAN: 4060892262470
MPN:
34171
Series: J-2Y(St)H
34171 HELUKABEL Telecommunication Cables
Image may differ
Unit Price (€ / mtr.)
4.5815 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
458.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
4.5815 €

Telephone cable, 34171, HELUKABEL

The 34171 is a telephone cable used as data transmission and connection cable suitable for fixed installation in and under plaster, for data transmission applications, for periphery instrument data processing computers. Suitable for transmission of analog- and digital signals up to 16 Mbit/s. High cross-talk attenuation values. Suitable as connecting cable for periphery equipment, data processing systems, monitors, Printers and cash register systems. The static screen (St) screen assures a disturbance-free data and signal transmission for measuring and control systems.

Technical specifications
Core insulation material PE
Number of cores 40
Outer diameter 12.7 mm
Colour grau
Halogen free Yes
Cable structure 20 x 2 x 0,6 mm
Cable material Kupfer, blank
Material Polymer
Temperature range (active) -5 °C bis 70 °C
Temperature range (unmoved) -30 °C bis 70 °C
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
