0 633 032 | Hengstler

Panel-mount-hour hours meter, 0 633 032

Order No.: 30K4052
EAN: 4099891454418
MPN:
0 633 032
Hengstler

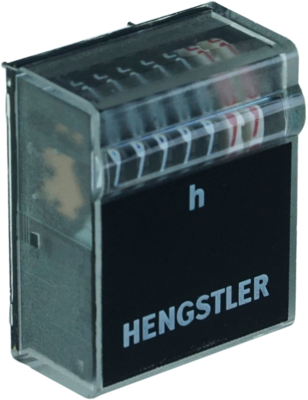

0 633 032 Hengstler Operating hours counter Image 1

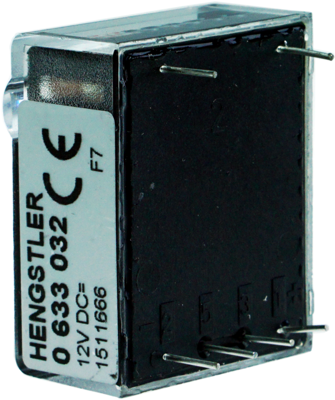

0 633 032 Hengstler Operating hours counter Image 2

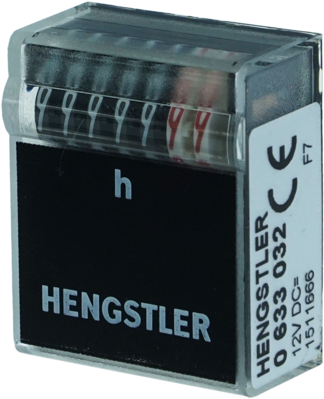

0 633 032 Hengstler Operating hours counter Image 3

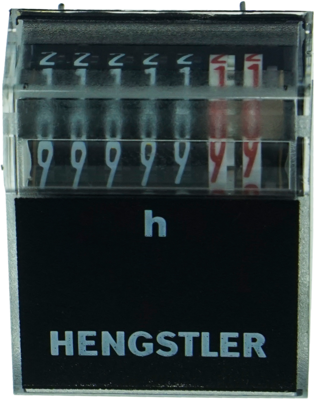

0 633 032 Hengstler Operating hours counter Image 4
0 633 032 Hengstler Operating hours counter Image 5
Image may differ
Unit Price (€ / pc.)
39.1510 € *
Available: 7 pcs.
Leadtime: On Request **
Total Price:
39.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
39.1510 €

Panel operating hours counter horizontal, Hengstler 0633.032

Compact design, without reset function. Suited for machine soldering, wash-proof, for PCB mounting, with 0.6 x 0.6 mm solder pins.

Mounting position: horizontal scrolling display

supply voltage: 12VDC

Current consumption: 17 mA

Degree of protection: IP 65

Safety class: II

Voltage tolerance: ±10 %

Digit height: 4.0 mm

Number style: white on black, black decimal point on white

Display: 7-digit

Display range: 99,999.99 h

Operating temperatures: - 10 to +60 °C

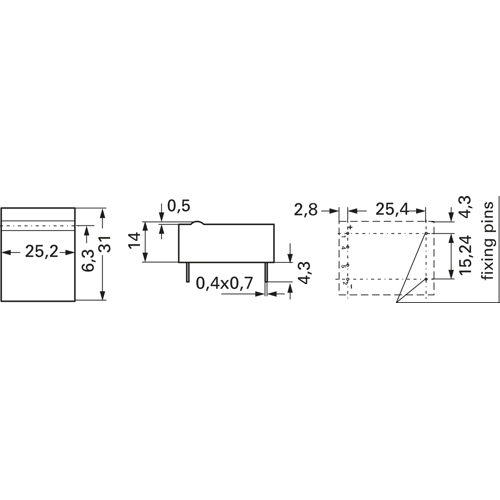

Technical specifications
Connection solder pin
Width 25.2 mm
Installation depth 14.6 mm
Accuracy 0.01 h
Height 31 mm
Power consumption 30 mW
Assembly PCB mounting
Degree of protection (IP) IP66
Voltage 12 VDC
Max. hour counts 99999.99 h
Logistics
Country of origin SK
Customs tariff number 90291000
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
