0 633 732 | Hengstler
Panel-mount-hour hours meter, 0 633 732
Order No.: 30K4056
EAN: 4099891454425
MPN:
0 633 732
Unit Price (€ / pc.)
41.4715 € *
Available: 0 pcs.
Leadtime: On Request **
Panel operating hours counters, type Hengstler 0633.
Compact design, without reset function; Mounting position: horizontal scrolling display. Degree of protection: IP 65. Safety class: II. Voltage tolerance: ±10 %. Digit height: 4.0 mm. Number style: white on black, black decimal point on white.
Vertical, type 0633.7.
Display: 7-digit. Display range: 99,999.99 h, suited for machine soldering, wash-proof, for PCB mounting, with 0.6 x 0.6 mm solder pins. Operating temperatures: –10 to +60 °C.
Technical attributes (type, supply voltage, power consumption): 0 633 732, 12 VDC, 17 mA

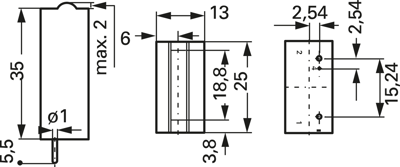

Technical specifications
| Connection | Lötstift | |
| Width | 30 mm | |
| Installation depth | 36.3 mm | |
| Accuracy | 0,01 h | |
| Height | 13.8 mm | |
| Power consumption | 0.03 W | |
| Assembly | Leiterplattenmontage | |
| Degree of protection (IP) | IP66 | |
| Voltage | 12 VDC | |
| Max. hour counts | 9999.99 h |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 90291000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 7/1/06 |
| SVHC free | Yes |
