0 891 531 | Hengstler

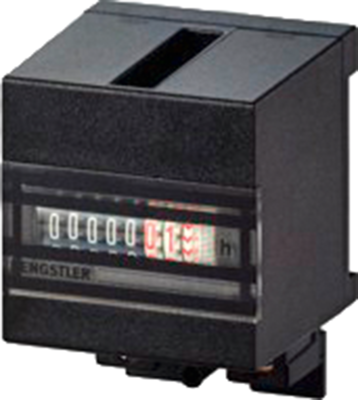

Panel-mount-hour hours meter, 0 891 531
Order No.: 30K3473
EAN: 4099891454371
MPN:
0 891 531
Unit Price (€ / pc.)
79.4920 € *
Available: 1 pcs.
Leadtime: 1 Week **
Panel operating hours counters Hengstler 0891 531
Screw-on or snap-on version for DIN rails

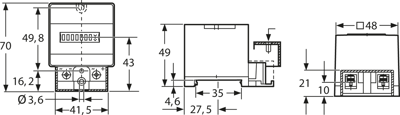

DIN dimensions: 24 x 48 mm. Features: good readability of the display, easy mounting, without reset function. Display: 7-digit, 0 to 99,999.99 h. Digit height: 5.0 mm. Operating temperatures: - 10 to +50 °C. Connection: screw terminals max. 2.5 mm² and 6.3 x 0.8 mm tab terminals. Mounting: with clamping frame. Mounting position: horizontal scrolling display. Degree of protection: IP 66 at the front. Safety class: II. Certifications (only for the AC types): UL, CSA.
Table index: type, supply voltage. Power consumption
531, for operation on 12 to 36 VDC, 550 mW
Technical specifications
| Connection | screw/plug-in connection | |
| Width | 48 mm | |
| Installation depth | 49 mm | |
| Accuracy | 0.01 h | |
| Height | 70 mm | |
| Power consumption | 0.75 W | |
| Assembly | built-in mounting | |
| Degree of protection (IP) | IP66 | |
| Voltage | 12-36 VDC | |
| Max. hour counts | 9999.99 h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90291000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 7/1/06 |
| SVHC free | Yes |
