0 486 164 | Hengstler

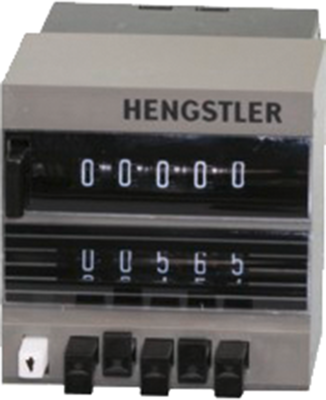

Panel-mount pulse counter, 0 486 164
Order No.: 30K3875
EAN: 4099891454906
MPN:
0 486 164
Unit Price (€ / pc.)
306.1394 € *
Available: 1 pcs.
Leadtime: 3 Weeks **
Panel pulse counters Hengstler 486 164, 24 VDC, zero reset button
5-digit, with static preset. Plug-in counter for any system configuration. Digit height: 2.0 x 4.0 mm. Connection: 9.3 x 1.6 mm round pins. Sampling rate: 10 pulses/s. type 764: with pushbutton and electronic zero reset. Reset rate: maximum 1/s. type 164/190: with zero reset button. The stated voltage represents the operating voltage. Counter dimensions: 50 x 50 mm.
Technical specifications
| Connection | Rundstift | |
| Width | 41.5 mm | |
| Installation depth | 64.2 mm | |
| Height | 31 mm | |
| Pulse duration | 50 ms | |
| Assembly | Einbaumontage | |
| Degree of protection (IP) | IP40 | |
| Voltage | 230 VAC | |
| Counting frequency | 10 Hz |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90291000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
