0 731 103 | Hengstler

Panel function counters, type Hengstler Tico 731-1.

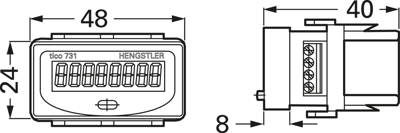

DIN dimensions: 24 x 48 mm, short case (40 mm). LCD (8-digit, 7.0 mm, range of values 0 to 99.999.999). Power supply: internal lithium battery. Retention of values: 7 years. Counter input: programmable for operation as voltage input (to 7.5 kHz, < 0.7 V and> 5.0 V, max. 30 V) or contact input (30 Hz). Reset: via keyboard input (lockable) or by means of static external reset signal. Pulse shape: any (at max. frequency: square wave 1:1). Input resistance: 50 kohm (static). Pulse duration: at least 17 ms/30 Hz, 70 µs/7.5 kHz. Operating temperatures: –10 to +50 °C. Connection: screw terminals. Mounting: with clamping frame. Front-panel cutout: 45 x 22 mm. Degree of protection: IP 65 at the front, IP 20 at the connections. Safety class II to EN 61010.

Type: 103, timer hhhh:mm:ss
