0 772 132 | Hengstler

Panel-mount multi-function counter, 0 772 132

Order No.: 30K5274
EAN: 4099891455385
MPN:
0 772 132
0 772 132 Hengstler Pulse Counters Image 1
0 772 132 Hengstler Pulse Counters Image 2
Image may differ
Unit Price (€ / pc.)
228.0278 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
228.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
228.0278 €

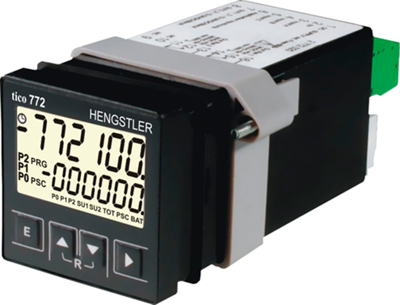

Panel multifunctional counters, type Hengstler Tico 772.

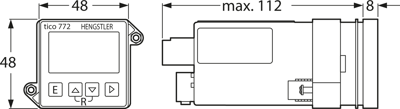

Universal use as tachometer and time/shift/stack/preset counter; Display: reflective LCD, 2 lines, 6 digits. Numeral height line 1/line 2: 9.3/7.2 mm. Signal times: can be programmed separately up to 599.99 seconds. Counting frequency: max. 60 kHz (single-channel count). Duty cycle: 100 %. Value retention: non-volatile memory, approx.10 years. Degree of protection: front/connections: IP 65/20. Safety class: II, EN/IEC 61010-1. Ambient temperatures: 0 to +50 °C. DIN dimension: 48 x 48 mm. Mounting cutout: 45 x 45 mm. Weight: approx. 200 g.

Technical attributes (type, supply voltage, outputs): 0 772 132, 230 VAC, 2 relays

Technical specifications
Connection Schraubanschluss
Width 48 mm
Height 48 mm
Assembly Einbaumontage
Degree of protection (IP) IP65
Voltage 230 VAC
Counting frequency 60 kHz
Logistics
Country of origin DE
Customs tariff number 90291000
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
