0 875 106 | Hengstler

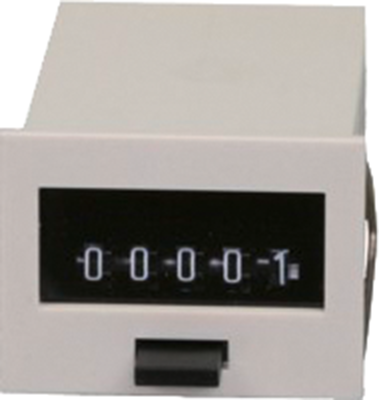

Panel-mount pulse counter, 0 875 106

Order No.: 30K382
EAN: 4099891454869
MPN:
0 875 106
0 875 106 Hengstler Pulse Counters
Image may differ
Unit Price (€ / pc.)
87.7268 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
87.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
87.7268 €

Panel pulse counters, type Hengstler 0875.

5-digit, with reset key (zero reset), tension spring fastener and plastic front-panel cap. Operation; depending on the type: 12 V and 24 VDC, as well as 230 VAC. Connection: 2.8 x 0.8 mm tab terminal. Dimensions: W 41.5, H 31, D 64.2 mm. Weight: approx. 100 g.

Type: 0875.106, 12 VDC

Technical specifications
Counting frequency 20 Hz
Pulse duration 50 ms
Voltage 230 VAC
Width 41.5 mm
Height 31 mm
Installation depth 64.2 mm
Assembly Einbaumontage
Connection Flachstecker
Degree of protection (IP) IP40
Logistics
Country of origin SK
Customs tariff number 90291000
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 7/1/06
SVHC free Yes
