2706 | HEYCO
Cover cap, (H) 11.5 mm, head Ø 25.8 mm, mounting Ø 22.2 mm, PA, black, for Mounting holes, 2706
Order No.: 12H9967
EAN: 4099891755249
MPN:
2706
Unit Price (€ / pc.)
0.2356 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

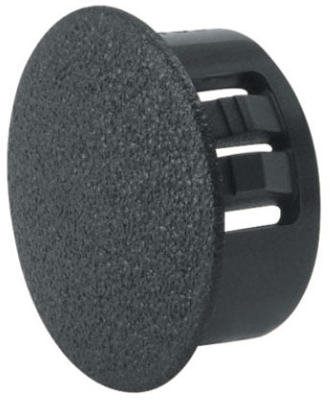

Hole plug, 2706, HEYCO
The 2706 is a halogen and phosphorus-free 94V-0 hole plug with mounting hole diameter range 22,2 mm and multiple locking steps for panel thickness up to 3,2 mm. Molded from a nylon material which, in the event of a fire, will not burn and will not produce toxic gases. Also formulated for sunlight resistance.
Features
- Close unneeded panel holes
- Quick and easy installation
- Convex, matte finish head tapers to a thin edge
- Locking fingers in fractional increments up to the maximum panel thickness
Applications
- Heat stabilize
- Self extinguishin
- Nontoxic
- UV Resistant
Technical specifications
| Colour | black | |
| Suitable for | Mounting holes | |
| Height | 11.5 mm | |
| Head Diameter | 25.8 mm | |
| Material | PA | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Mounting hole size | 22.2 mm | |
| Accessory Type | cover cap |
Download
Logistics
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
