2789 | HEYCO
Cover cap, (H) 11.9 mm, head Ø 55.1 mm, mounting Ø 50.8 mm, PA, black, for Mounting holes, 2789
Order No.: 12H9974
EAN: 4099891755317
MPN:
2789
Unit Price (€ / pc.)
0.6188 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

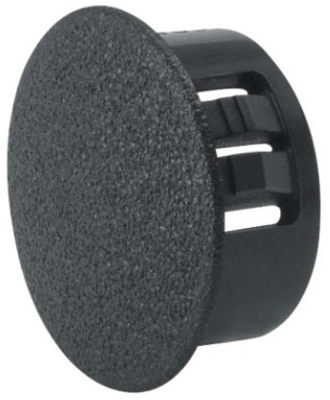

Hole plug, 2789, HEYCO
The 2789 is a halogen and phosphorus-free 94V-0 hole plug with mounting hole diameter range 50,8 mm and multiple locking steps for panel thickness up to 3,2 mm. Molded from a nylon material which, in the event of a fire, will not burn and will not produce toxic gases. Also formulated for sunlight resistance.
Features
- Close unneeded panel holes
- Quick and easy installation
- Convex, matte finish head tapers to a thin edge
- Locking fingers in fractional increments up to the maximum panel thickness
Applications
- Heat stabilize
- Self extinguishin
- Nontoxic
- UV Resistant
Technical specifications
| Farbe | schwarz | |
| Geeignet für | Befestigungslöcher | |
| Höhe | 11.9 mm | |
| Kopfdurchmesser | 55.1 mm | |
| Material | PA | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Montagelochgröße | 50.8 mm | |
| Zubehörart | Abdeckkappe |
Download
Logistics
| Ursprungsland | US |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
