3018 | HEYCO

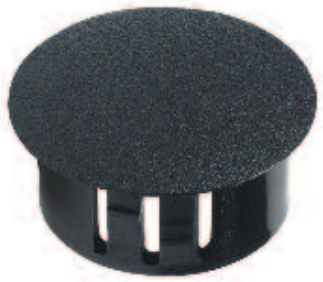

Cover cap, (H) 14.3 mm, head Ø 30.9 mm, mounting Ø 28.6 mm, thickness 6.4 mm, PA, black, 3018
Order No.: 12H5437
MPN:
3018
Unit Price (€ / pc.)
0.1809 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Cover cap, 3018, HEYCO
Cover cap for use in panels thicker than .125" (3,2 mm).
Features
- Close unneeded panel holes and electrical knock-outs
- Locking fingers snap into holes with fingertip pressure for quick and easy installation
- Convex, matte finish head tapers to a thin edge
- Locking fingers in fractional increments up to the maximum panel thickness
- Withstand a push back force of 35 pounds
Technical specifications
| Farbe | schwarz | |
| Höhe | 14.3 mm | |
| Kopfdurchmesser | 30.9 mm | |
| Material | PA | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -40 °C | |
| Montagelochgröße | 28.6 mm | |
| Wandstärke | 6,4 mm | |
| Zubehörart | Abdeckkappe |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
