3138 | HEYCO
Cover cap, (H) 14.3 mm, head Ø 24.2 mm, mounting Ø 22.2 mm, thickness 6.4 mm, PA, black, 3138
Order No.: 12H5584
MPN:
3138
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

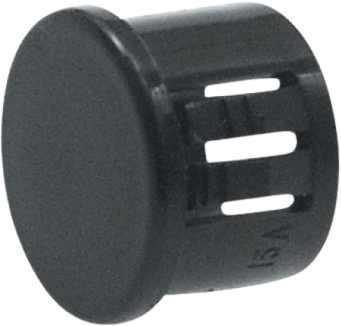

Cover cap, 3138, HEYCO
Cover cap for use in panels thicker than .125" (3,2 mm).
Features
- Smooth, glossy head provides easy glide and shiny finish
- Close unneeded panel openings
- Locking fingers snap into holes with fingertip pressure for quick and easy installation
- Locking fingers in fractional increments up to the maximum panel thickness
- Withstand a push back force of 35 pounds
Technical specifications
| Colour | black | |
| Height | 14.3 mm | |
| Head Diameter | 24.2 mm | |
| Material | PA | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Mounting hole size | 22.2 mm | |
| Wall thickness | 6.4 mm | |
| Accessory Type | cover cap |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
