3003 | HEYCO
Grommet, cabel-Ø 25.4 mm, PA, black, 3003
Order No.: 12H5732
MPN:
3003
Unit Price (€ / pc.)
0.2796 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

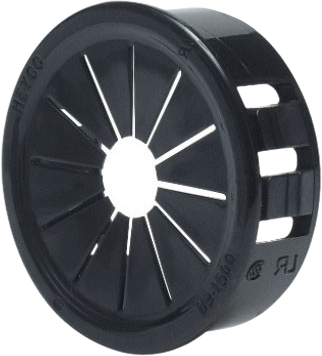

Grommet, 3003, HEYCO
Grommet for use in mounting panels up to .250" thick.
Features
- Flexible shutters to absorb vibration on the inside diameter
- Insulate and mechanically protect electrical and telecommunications cables, tubing, hose, rope, and utility lines
- Withstand a push back force of 35 pounds
- Locking fingers snap into holes with fingertip pressure
Technical specifications
| Version | grommet | |
| Colour | black | |
| Material | PA | |
| max. Cable diameter | 25.4 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -18 °C | |
| Mounting hole size | 34.9 mm | |
| Wall thickness | 6.4 mm |
Download
Logistics
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
