C2062 | HEYCO

Grommet, cable Ø 3.3 to 9.5 mm, PA/TPE, black, C2062

Order No.: 12H3769
EAN: 4099891195915
MPN:
C2062
HEYCO

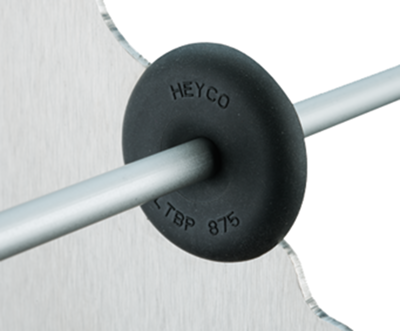

C2062 HEYCO Grommets Image 1
C2062 HEYCO Grommets Image 2
Image may differ
Unit Price (€ / pc.)
0.7259 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
0.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.7259 €

Cap/grommet IP 67/68, type Heyman 206568

Can be used as cap or grommet, with light strain relief.

For mounting hole diameter: 15.9 mm

For cable diameter: 3.3 mm 9.5 mm

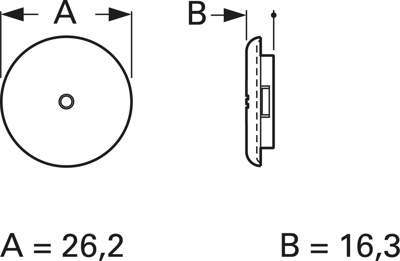

Head diameter: 26.2 mm

For Panel thickness: 1.6 mm to 6.4 mm | Depth: 16.3 mm

Material: PA6.6, TPE | Inflammability: HB

Degree of protection: IP 67/68 | Color: black

Operating temperatures: - 40 to + 100 °C | Certifications: UL, CSA

Technical specifications
Ausführung Kabeldurchführung
Farbe schwarz
Material PA/TPE
max. Kabeldurchmesser 9.5 mm
max. Temperatur 100 °C
min. Kabeldurchmesser 3.3 mm
min. Temperatur -40 °C
Montagelochgröße 15.9 mm
Wanddicke 6.4 mm
Logistics
Ursprungsland US
Zolltarifnummer 39269097
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
