HR10-7P-6P(73) | HIROSE

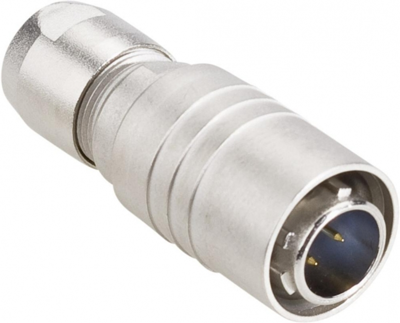

Plug, 6 pole, solder cup, push pull, straight, HR10-7P-6P(73)
Unit Price (€ / pc.)
12.3998 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
61,999.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
12.3998 €
Circular connector with push-pull lock, type Hirose HR10.
Solder terminals; Dielectric strength: 300 VAC/min. Current rating: 2.0 A. Insulation resistance: 1.0 Gohm. Contact resistance: max. 10 mohm.
Circular connector, full metal version, type HR10.
Contacts: gold-plated.
Plugs, straight.
Technical attributes (type, number of poles, dimensions): HR10-7P-6P(73), 6-pole, A 28.5, B 11, C 7.0, D 5.2 mm
Technical specifications
| Version | Stecker | |
| Shell Material | Metall | |
| Cable diameter | 5 mm | |
| Contact connection | Lötkelch | |
| contact surface | vergoldet | |
| Cable cross-section | 11,0 mm² | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 6-polig | |
| Type of locking | Push-Pull |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
