930620106 | Hirschmann Automation and Control

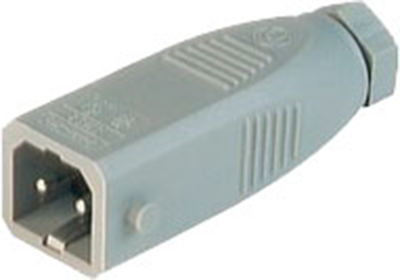

Plug, 2 pole, cable assembly, screw connection, 1.5 mm², gray, 930620106
Unit Price (€ / pc.)
6.3189 € *
Available: 0 pcs.
Next delivery: 194 pcs. on 2025-03-21
Leadtime: 4 Weeks **
Total Price:
6.32 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3189 €
10 pcs.
5.5692 €
100 pcs.
4.8790 €
250 pcs.
4.7005 €
1000 pcs.
4.4030 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.
Cable connectors without strain relief, type STAS 2.
Type: STAS 2, cable plug
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bauform | gerade | |
| Farbe | grau | |
| Kabeldurchmesser | 4 bis 6,5 mm | |
| Leiterquerschnitt | 1,5 mm² | |
| Montage | Kabelmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 16 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Polzahl | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 90 °C |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
