931692106 | Hirschmann Automation and Control
Plug, 5 pole, cable assembly, crimp connection, 1.0 mm², gray, 931692106
Unit Price (€ / pc.)
9.5438 € *
Available: 32 pcs.
Leadtime: 2 Weeks **
Total Price:
9.54 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5438 €
10 pcs.
8.4014 €
50 pcs.
7.8302 €
150 pcs.
7.4732 €
500 pcs.
7.1043 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature Connector, 5-pole + PE, type Hirschmann STAS../STAK.
With crimp terminals for max. 1.0 mm² conductors; Contacts: CuZn, silver-plated. Housing: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 A DC/6.0 A AC. Contact resistance: 10 mohm. Pin diameter: 1.6 mm. Degree of protection to IEC 60529: IP 54. Degree of soiling: 3. Cable gland: Pg 11. Cable diameters: 8.0 mm to 10 mm. Operating temperatures: –30 °C to +90 °C. Certifications: VDE, SEV, UL. The miniature connectors are supplied in bare state, each with 6 contact elements. Certifications: VDE, SEV.

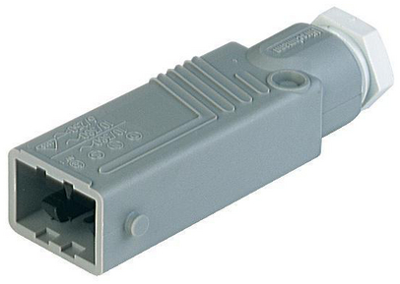

Cable plugs, type STAS 5.

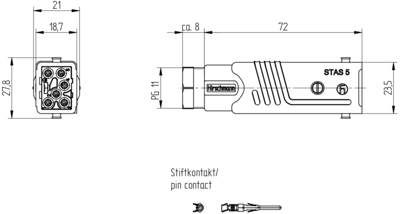

Type: STAS 5, cable plug
Technical specifications
| Connection | crimp connection | |
| Version | plug | |
| Design | straight | |
| Colour | gray | |
| Cable diameter | 8 to 10 mm | |
| Cable cross-section | 1.0 mm² | |
| Assembly | cable assembly | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 400 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 10 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 5 pole | |
| Fuse holder present | No | |
| Pin temperature | 90 °C |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
