932038106 | Hirschmann Automation and Control

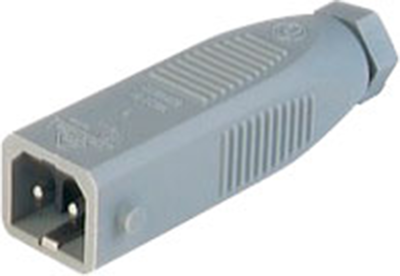

Plug, 2 pole, cable assembly, screw connection, 1.5 mm², gray, 932038106
Unit Price (€ / pc.)
7.8421 € *
Available: 163 pcs.
Leadtime: 13 Weeks **
Total Price:
7.84 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8421 €
10 pcs.
6.9020 €
50 pcs.
6.4260 €
150 pcs.
6.1404 €
500 pcs.
5.8429 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL, VDE, SEV. Not compatible with connectors with end number 2 and 20.
Cable connectors with strain relief and coding fin, type STAS 200.
Type: STAS 200, cable plug
Technical specifications
| Connection | screw connection | |
| Version | plug | |
| Design | straight | |
| Colour | gray | |
| Cable diameter | 4 to 6.5 mm | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 16 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 2 pole | |
| Fuse holder present | No | |
| Pin temperature | 90 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
