932092100 | Hirschmann Automation and Control
Plug, 4 pole, PCB mounting, solder connection, black, 932092100
Connector, 4-pole, type Hirschmann G 4.
Suited for power and control cable connections for small drives, hydraulic and pneumatic control systems, electrical appliances in the medical sector and photocells, with coding against faulty insertion; Rated voltage: 50 V AC/DC. Rated current: 10 A (line coupling type G 4 W 1 F 6.0 A). Contact resistance: max. 4.0 mohm. Cable diameters: 4.0 to 7.5 mm. Degree of protection (IEC 60529): IP 65. Degree of soiling: 3. Contact finish: tin. Contact block and housing material: PA. Inflammability class: 94 HB. Operating temperatures: –40 to +90 °C. Standards and certifications: DIN VDE 0627, IEC 61984.

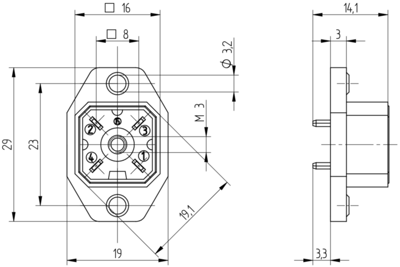

Chassis plugs, type G 4 A 5 M.
With flange for screw mounting and PCB terminals 2.8 x 0.8 mm; Contact type: blade contacts.

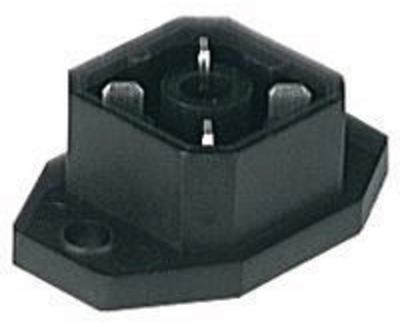

Type: G 4 A 5 M, chassis plug, black
| Connection | solder connection | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| Cable diameter | 4 to 7.5 mm | |
| Assembly | PCB mounting | |
| Rated voltage IEC | 50 V | |
| Rated voltage UL/CSA | 50 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 10 A | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 4 pole | |
| Pin temperature | 90 °C |
| Country of origin | HU |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
