932140100 | Hirschmann Automation and Control

Jack, 3 pole + PE, screw connection, 0.25-1.5 mm², black, 932140100

Order No.: 50F7448
MPN:
932140100
STAK 3 N schwarz
Series: STAK

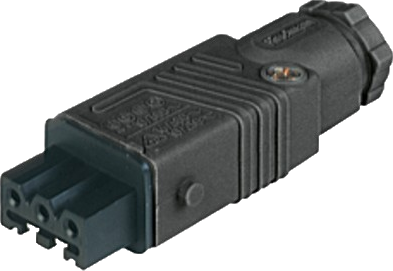

932140100 Hirschmann Automation and Control Device Connectors Image 1

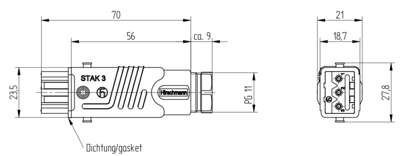

932140100 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9611 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
7.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.9611 €

Female connector, 932140100, Hirschmann Automation and Control

Female, straight with strain relief, 3-pin+PE, black housing, 400 V AC/230 V DC, 16 A AC/10 A DC.

Technical specifications
Connection Schraubanschluss
Version Buchse
Design gerade
Colour schwarz
Cable diameter 6 bis 10 mm
Cable cross-section 0,25-1,5 mm²
Rated voltage IEC 400 V
Rated current IEC 16 A
Line filter present No
Switch illuminated No
Power switch available No
Pin number 3-polig + PE
Fuse holder present No
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
