932186106 | Hirschmann Automation and Control

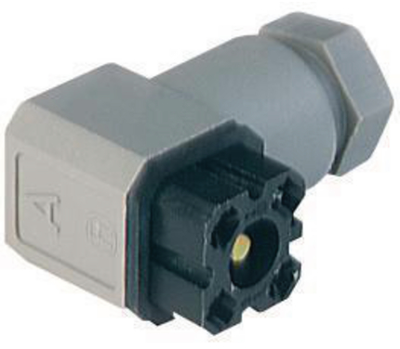

Jack, 3 pole, cable assembly, solder connection, gray, 932186106
Connector, 3-pole + PE, type Hirschmann G 30.
Suited for power and control cable connections for small drives, hydraulic and pneumatic control systems, electrical appliances in the medical sector and photocells, with coding against faulty insertion; Rated voltage: 250 V AC/DC. Rated current: 10 A (line coupling type G 30 W 3 F, 6.0 A). Contact resistance: max. 4.0 mohm. Cable diameters: 4.0 to 7.5 mm. Degree of protection (IEC 60529): IP 65. Degree of soiling: 3. Contact finish: tin. Contact block and housing material: PA, gray. Inflammability class: 94 HB. Operating temperatures: –40 to +90 °C. Standards and certifications: DIN VDE 0627, IEC 61984.
Cable jacks, type G 30 W 3 F.
With soldering contacts and Pg 7-power gland; Conductor cross-section: max. 0.5 mm². Contact type: fork-type spring. Supplied with 1 bushing screw M 3 x 20 and 1 sealing.

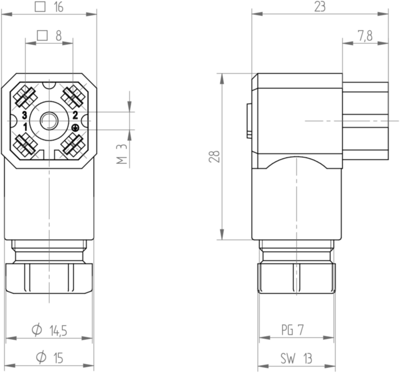

Type: G 30 W 3 F, cable jack
| Anschluss | Lötanschluss | |
| Ausführung | Kupplung | |
| Bauform | abgewinkelt | |
| Farbe | grau | |
| Kabeldurchmesser | 4 bis 7,5 mm | |
| Montage | Kabelmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 10 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 90 °C |
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
