18060 | Hirschmann Automation and Control

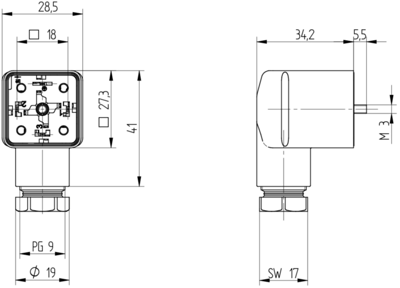

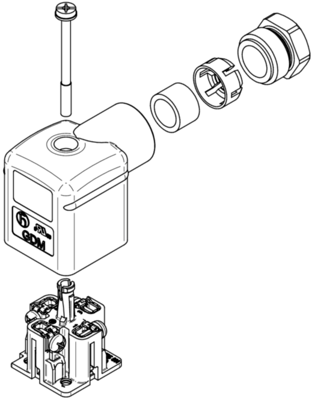

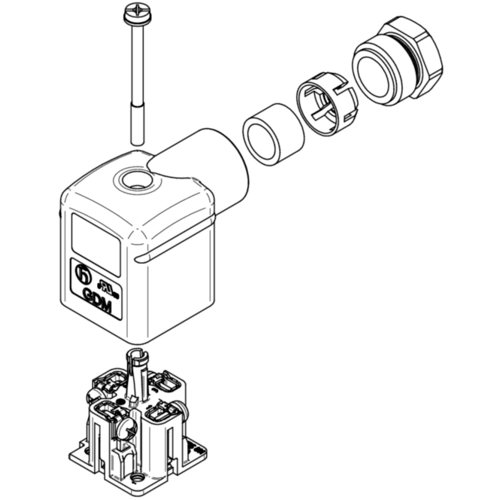

Valve connector, DIN shape A, 3 pole + PE, 300 V, 0.25-1.5 mm², 18060
Unit Price (€ / pc.)
2.8679 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Valve connector, GDM31AL-A0U-1KD, Hirschmann Automation and Control
With hydraulic, pneumatic and electromagnetic actuator and sensor, this type A valve connector stands ready for any harsh environment. Rugged, highly impermeable design guarantees uncompromising reliability in the most demanding applications.
Features
- Long-lasting performance - state-of-the-art housing singularly engineered for mechanical challenges and vibrations, optionally with strain relief and UL2238 approval
- Outstanding reliability - high IP67 and IP69 impermeability combined with an extraordinary resistance towards environmental impacts, oils and lubricants
- Unmatched flexibility - choose from numerous configurations to match your individual application challenges
Technical specifications
| Ausführung | DIN FORM A | |
| Beschaltung | ohne Beschaltung | |
| LED-Anzeige | No | |
| Leiterquerschnitt | 0,25-1,5 mm² | |
| Nennspannung | 300 V | |
| Polzahl | 3-polig + PE | |
| Schutzart (IP) | IP65/IP67 | |
| Verriegelung | Zentralschraube |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
