832954200 | Hirschmann Automation and Control

Valve panel plug, DIN shape A, 3 pole + PE, 400 V, 0.08-1.5 mm², 832954200

Order No.: 50F9440
EAN: 4099889743494
MPN:
832954200
GSP-U 3000 LO SN
Series: GSP

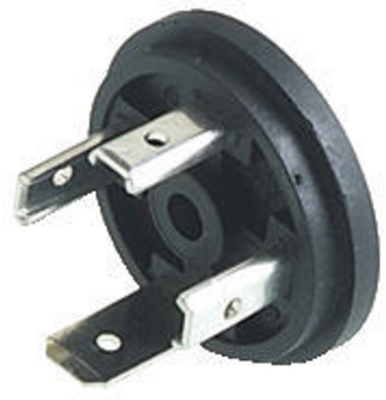

832954200 Hirschmann Automation and Control DIN Valve Connectors Image 1
832954200 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
1.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.0591 €

Valve panel plug, GSP-U 3000 LO SN, Hirschmann Automation and Control Automation and Control

GSP-U DIN standard receptacle with connection thread and solder contacts: Form A, 4-pin (3+1PE), solder type; 400 V AC/DC, 16 A.

Technical specifications
Ausführung DIN FORM A
Leiterquerschnitt 0,08-1,5 mm²
Nennspannung 400 V
Polzahl 3-polig + PE
Schutzart (IP) IP65
Verriegelung Zentralschraube
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
