931352100 | Hirschmann Automation and Control

Valve panel plug, DIN shape B, 2 pole + PE, 250 V, 0.08-1.5 mm², 931352100

Order No.: 50F9468
EAN: 4099889743555
MPN:
931352100
GSA 20
Series: GSA
Hirschmann Automation and Control

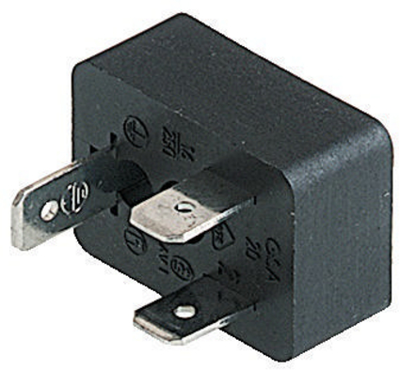

931352100 Hirschmann Automation and Control DIN Valve Connectors Image 1
931352100 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.7612 € *
Available: 0 pcs.
Leadtime: 31 Weeks **
Total Price:
1.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7612 €

Valve Connector Type B, GSA 20, Hirschmann

Dependable Technology, Perfect Connection

Intuitive handling combined with a particularly durable design makes the proven type B valve connectors the ideal choice for challenging industrial automation surroundings.

FEATURES

  • Easy to connect – with plug-andplay, prewired cordsets or flexible field attachables, user-friendly
  • Easy to maintain – protective circuitries combined with all-around clearly visible LED function displays facilitate quick optical controls and ease of maintenance
  • Easy to rely on – ideal for harsh applications due to an extended temperature range, high imperme- ability and a vibration-proof design

Technical Data

  • Version: DIN FORM B
  • Pin number: 2 + PE
  • Type of locking: Central Screw
  • Cable cross-section: 0.08-1.5 mm²
Technical specifications
Version DIN shape B
Wiring without circuit
LED display No
Cable cross-section 0.08-1.5 mm²
Rated voltage 250 V
Pin number 2 pole + PE
Degree of protection (IP) IP65
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
