932109100 | Hirschmann Automation and Control

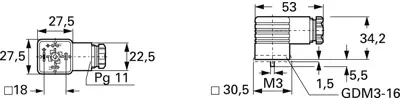

Valve connector, DIN shape A, 3 pole + PE, 250 V, 0.25-1.5 mm², 932109100
Valve connector, GDM 3011 J SW,Hirschmann Automation and Control
+ PE, contact arrangement to DIN EN 175 301-803-A and leading protective ground; Operating voltage/current: series GDM 250 V AC/DC/16 A, series GDML 250 V AC/DC/8.0 A, series GDME 400 VAC/250 VDC/16 A.Creeping current distances/air gaps to VDE 0110/11.72. Insulation group: C. Degree of protection (in plugged and secured state): IP 65. Degree of soiling: 3. Housing and contact block: glass fiber-reinforced polyamide compliant with UL 94 HB, GDME UL 94 V-1. Vibration-proof interlock with bushing screw. Supplied with screws.
With screwed cable gland Pg 11, type GDM 2011/GDM 3011.
For cable diameters from 6.0 to 9.0 mm; Screw terminal: max. 1.5 mm². Color: black. Certifications: VDE, SEV, CSA. Type J: also UR. Operating temperatures: - 40 to +125 °C. The sealing accessories are described below.
Type: GDM 3011 J, 3-pole + PE.
| Version | DIN FORM A | |
| Cable cross-section | 0,25-1,5 mm² | |
| Pin number | 3-polig + PE | |
| Rated voltage | 250 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | ohne Beschaltung | |
| LED display | No | |
| Type of locking | Zentralschraube |
| Country of origin | DE |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
