932110100 | Hirschmann Automation and Control

Valve connector, DIN shape A, 3 pole + PE, 300 V, 0.25-1.5 mm², 932110100

Order No.: 50F9318
EAN: 4099889743333
MPN:
932110100
GDM 3014 J
Series: GDM
Hirschmann Automation and Control

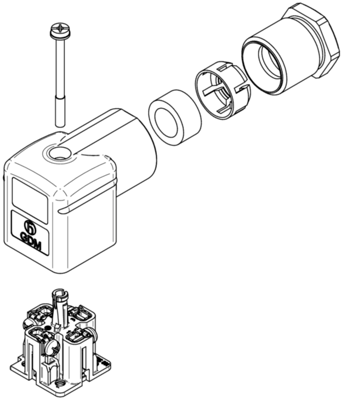

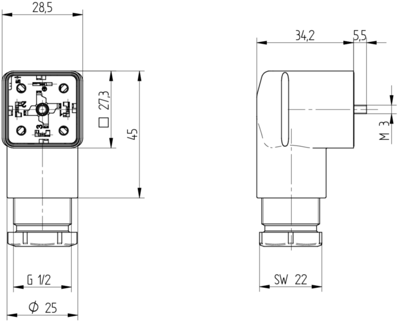

932110100 Hirschmann Automation and Control DIN Valve Connectors Image 1
932110100 Hirschmann Automation and Control DIN Valve Connectors Image 2
932110100 Hirschmann Automation and Control DIN Valve Connectors Image 3
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.0587 €

Valve Connector Type A, GDM 3014 J, Hirschmann

With hydraulic, pneumatic and electromagnetic actuators and sensors, the GDM and GAN series stands ready for any harsh environment. Rugged, highly impermeable design guarantees uncompromising reliability in the most demanding applications.

FEATURES

  • Long-lasting performance – state-of-the-art housing singularly engineered for mechanical challenges and vibrations, optionally with strain relief and UL2238 approval
  • Outstanding reliability – high IP67 and IP69 impermeability combined with an extraordinary resistance towards environmental impacts, oils and lubricants
  • Unmatched flexibility – choose from numerous configurations to match your individual application challenges

Technical Data

  • Version: DIN FORM A
  • Pin number: 3 + PE
  • Type of locking: Central Screw
  • Cable cross-section: 0.25-1.5 mm²
Technical specifications
Version DIN shape A
Wiring without circuit
LED display No
Cable cross-section 0.25-1.5 mm²
Rated voltage 300 V
Pin number 3 pole + PE
Degree of protection (IP) IP65
Type of locking central screw
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
