933030100 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 230 V, 0.25-1.5 mm², 933030100

Order No.: 50F8982
EAN: 4099889742800
MPN:
933030100
GDME 2013 schwarz
Series: GDME

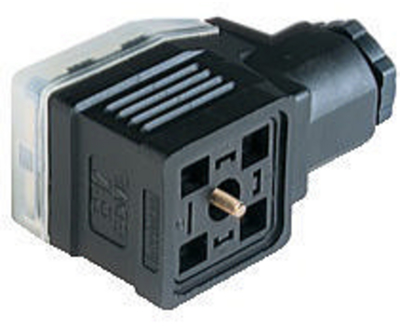

933030100 Hirschmann Automation and Control DIN Valve Connectors Image 1
933030100 Hirschmann Automation and Control DIN Valve Connectors Image 2
933030100 Hirschmann Automation and Control DIN Valve Connectors Image 3
Image may differ
Unit Price (€ / pc.)
5.4264 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
5.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4264 €

Valve connector, GDME 2013 schwarz, Hirschmann Automation and Control Automation and Control

GDME Heavy Duty DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), black housing with transparent cover, screw type, PG13.5; without circuitry, 230 V DC / 400 V AC AC/DC, 16 A.

Technical specifications
Version DIN FORM A
Wiring ohne Beschaltung
LED display No
Cable cross-section 0,25-1,5 mm²
Rated voltage 230 V
Pin number 2-polig + PE
Degree of protection (IP) IP65
Type of locking Zentralschraube
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
